Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Hydraulic DTH drilling rig for mining

Surface DTH drilling rig open-pit

Separated DTH drilling rig hydraulic

Τόπος καταγωγής:

Κίνα

Μάρκα:

RanCheng

Πιστοποίηση:

CE, ISO 9001:2000

Αριθμό μοντέλου:

RCZ420T

Μας ελάτε σε επαφή με

Αίτημα Ένα απόσπασμα

Λεπτομέρειες για το προϊόν

Κινητήρας:

Yuchai YC4A100/70 kW, China II

Όγκος δεξαμενών diesel:

70 λίτρα

βάθος τρύπας:

30 μέτρα

Σωλήνα τρυπανίου:

φ76*3000 χιλ.

Διάμετρος τρύπας:

φ90-138 mm

DTH σφυρί:

4"/5"

Δρόμος περιστροφής (μέγιστος):

3200 N.m

Επισημαίνω:

Hydraulic DTH drilling rig for mining

Surface DTH drilling rig open-pit

Separated DTH drilling rig hydraulic

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

Τιμή

US $18000-22000

Συσκευασία λεπτομέρειες

Τυπική αποστολή

Χρόνος παράδοσης

10-15 εργάσιμες ημέρες

Όροι πληρωμής

T/T, Western Union

Δυνατότητα προσφοράς

100 σετ ανά μήνα

Συγγενικά προϊόντα

Βίντεο

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Πάρτε την καλύτερη τιμή

Βίντεο

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Πάρτε την καλύτερη τιμή

Βίντεο

Ενσωματωμένη επιφανειακή μηχανή γεωτρήσεων DTH

Πάρτε την καλύτερη τιμή

Βίντεο

Αυτοματοποιημένη ολοκληρωμένη υδραυλική συσκευή γεωτρήσεων DTH για Yuchai YC6J220 162 KW

Πάρτε την καλύτερη τιμή

Μας ελάτε σε επαφή με

Επαφή τώρα

Περιγραφή του προϊόντος

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Name: Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCZ420T
Price: 20,000.00 USD
Availability: InStock

Product Overview

The RCZ420T hydraulic DTH drilling rig is equipped with a dual-motor rotary drill head and a multi-way adjustable rotary speed valve.

With a rotation torque of up to 3200N·m, it meets the high drilling requirements for large 76mm drill rods and 138mm drill diameters.

It has a 3m propulsion length, enabling wider and deeper drilling operations.

Featuring construction-grade crawlers, a piston motor, and a leveling function, it has better climbing capacity and off-road performance. The 420 model can adapt to more complex construction site conditions.

It can drill vertical holes on sloped surfaces, meeting different construction requirements.

Technical Specifications

Model	RCZ420T
Engine	Yuchai YC4A100/70 kW, China II Yuchai YC4DK100/73.5 kW, China III
Diesel tank volume	70 L
Weight	5280 kg
Dimension	542023082500 mm
Hole depth	30 m
Drill pipe	φ76*3000 mm
Hole diameter	φ90-138 mm
DTH hammer	4"/5"
Rotation torque (max.)	3200 N.m
Feed force	20 kN
Pull up force	45 kN
Feed type	Chain/cylinder
Gradient	25°
Track frame osciliation	+/- 10°
Tramming speed	3 km/h

Key Features

The dual-motor rotary drill head, with larger torque and higher rotation speed, meets the drilling needs for 76mm drill rods and 130mm drill diameters.

Construction-grade crawlers and a piston motor ensure more reliable machine performance and better traveling capabilities, allowing it to better adapt to complex ground conditions in surface mining drilling operations.

The centralized control panel is easy to operate, enhancing the efficiency, safety, and comfort of drilling operations.

The newly added leveling function gives the machine better climbing capacity and off-road performance, enabling it to handle different construction environments more effectively. The 420 model can also drill vertical holes on sloped surfaces, meeting various construction needs.

Applications

This RCZ420T hydraulic DTH drilling rig is widely used in open-pit mining blast hole drilling, quarry blast hole drilling, highway blast hole drilling, water conservancy projects, power station construction, railway construction, and other construction drilling operations.

Product Images

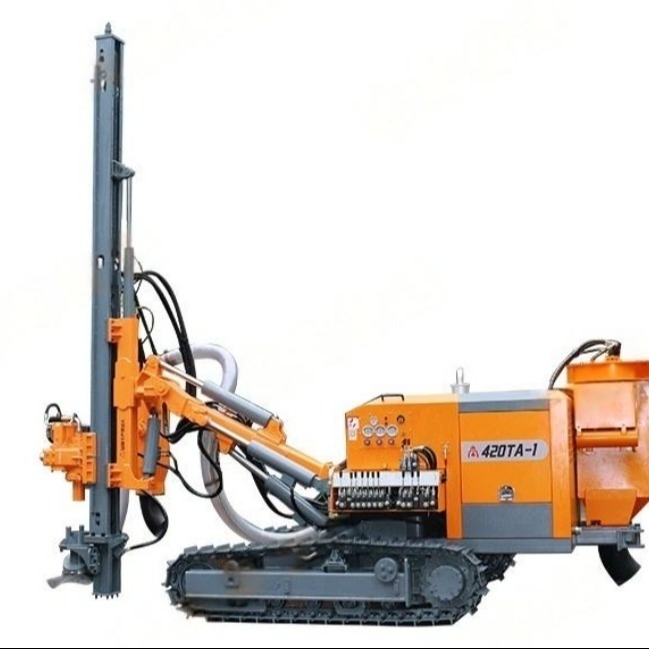

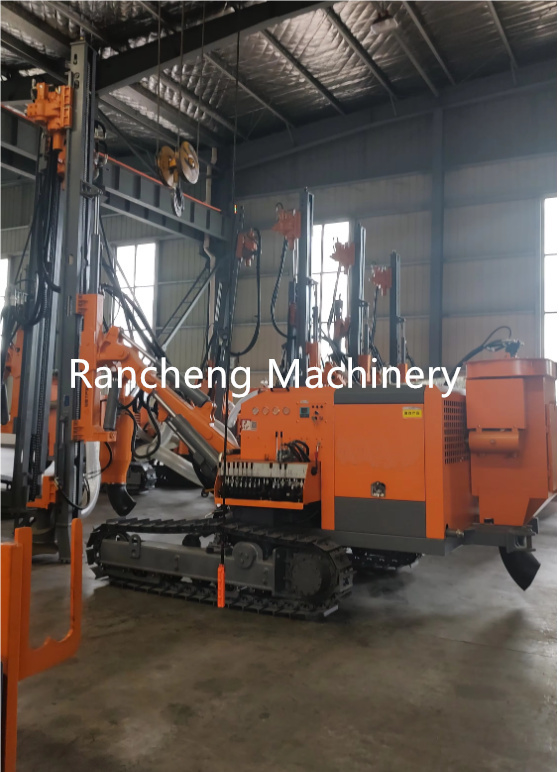

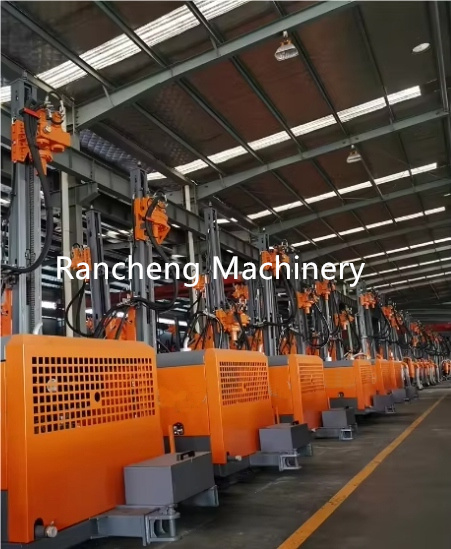

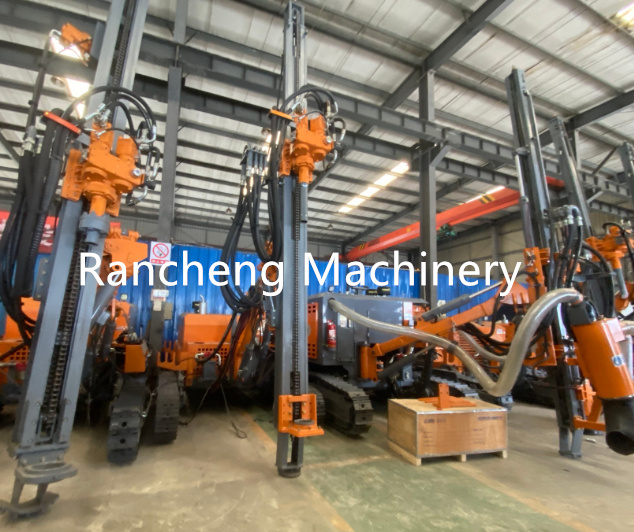

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 0

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 1

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 2

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 3

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 4
