Name: RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF150S
Price: 15,750.00 USD
Availability: InStock

Σπίτι > προϊόντα > Μηχανή τρυπήματος πηγών νερού >

RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine

42kW diesel water well drilling machine

RCF150S well drilling rig

Yunnei engine water well drill

Τόπος καταγωγής:

Κίνα

Μάρκα:

RanCheng

Πιστοποίηση:

CE, ISO 9001:2000

Αριθμό μοντέλου:

RCF150S

Μας ελάτε σε επαφή με

Αίτημα Ένα απόσπασμα

Λεπτομέρειες για το προϊόν

Χρώμα:

Προσαρμόσιμη

Μηχανές ντίζελ:

42 kW κινητήρας Yunnei

Αποδοτικότητα τροφοδοσίας:

10-35m/h

Ταχύτητα ταξιδιού:

2.5Km/h

Ικανότητα αναρρίχησης:

30°

Διάμετρος σωλήνα:

76 mm/89 mm

μήκος σωλήνα:

2 μέτρα

Επισημαίνω:

42kW diesel water well drilling machine

RCF150S well drilling rig

Yunnei engine water well drill

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

Τιμή

US$ 12000-19500

Συσκευασία λεπτομέρειες

Μπορεί να αποσταλεί με ένα 20 "κουτί

Χρόνος παράδοσης

10-15 εργάσιμες ημέρες

Όροι πληρωμής

T/T, Western Union

Δυνατότητα προσφοράς

100 σετ ανά μήνα

Συγγενικά προϊόντα

Βίντεο

Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins

Πάρτε την καλύτερη τιμή

Βίντεο

200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale

Πάρτε την καλύτερη τιμή

Βίντεο

Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil

Πάρτε την καλύτερη τιμή

Βίντεο

Industrial-Grade 280M Diesel Hydraulic Drill Rig Designed for Fast Penetration

Πάρτε την καλύτερη τιμή

Μας ελάτε σε επαφή με

Επαφή τώρα

Περιγραφή του προϊόντος

RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine

Product Attributes

Attribute	Value
Color	Customizable
Diesel engine	42KW Yunnei engine
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Pipe diameter	76mm/89mm
Pipe length	2m

Product Description

RCF150S Water Well Drilling Machine For 10-35m/H Feeding Efficiency 42kW Yunnei Diesel Engine

The rotation is driven by two high-torque, compact and adjustable-speed motors.
The triple gear pump ensures the durability and reliability of the oil pump.
The combined platform is beautifully designed and equipped with pedals for easy operation.
Equipped with clutch and auxiliary cooler, it is suitable for high altitude and cold climate areas.
German technology travel motor; high torque, high climbing ability, low failure rate.

Machine Specifications

Bore diameter(hammer)	90-300mm
Bore depth	150m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Once-time advance length	2.4m
Pipe diameter	76mm/89mm
Pipe length	2m
Push force	4T
Lifting force	12T
Max torque of rotary	3500-3800Nm
Rotary speed	40-65r/min
Mud Pump flow	200L/min (option)
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	2300×1200×1900MM
Weight	2300kg
Diesel engine	42KW Yunnei engine

Pricing Information

The price of a 150m water well drilling rig usually ranges from $10,000 to $60,000 or even higher, depending on factors such as brand, configuration, features and market conditions.

For example, the RCF150S water well drilling rig manufactured by Henan Shanhe Rancheng Machinery costs $12,000 and has excellent performance. As a professional drilling rig manufacturer with more than 10 years of industry experience, we provide a full range of services from demand assessment to equipment selection to meet your specific drilling needs.

The RCF150S is CE and ISO certified, equipped with a 42kW Yunnei diesel engine, and can drill holes up to 150m deep with a hole diameter range of 90-300mm. The rig is designed for off-grid operations and is suitable for operations in remote areas with limited power supply.

Our comprehensive after-sales service system, including shared global warranty, technical training and parts supply, gives you peace of mind and maximizes the operational efficiency of each project.

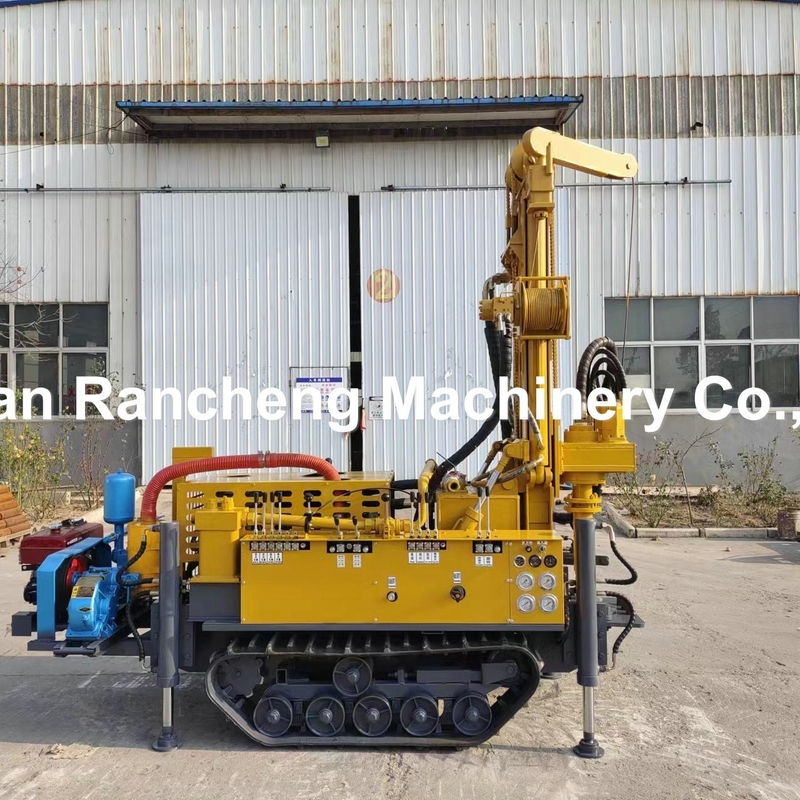

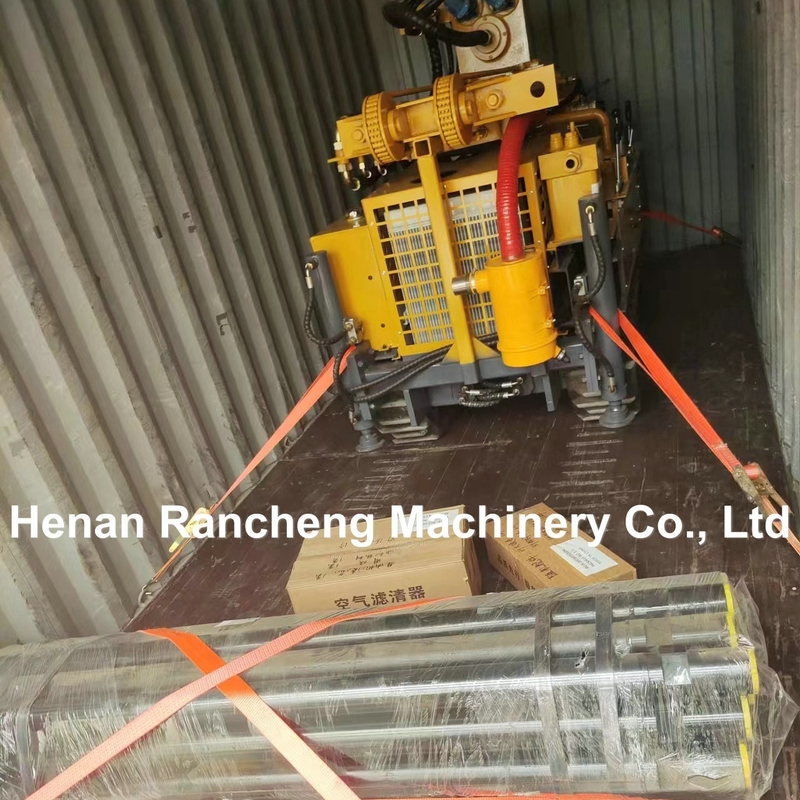

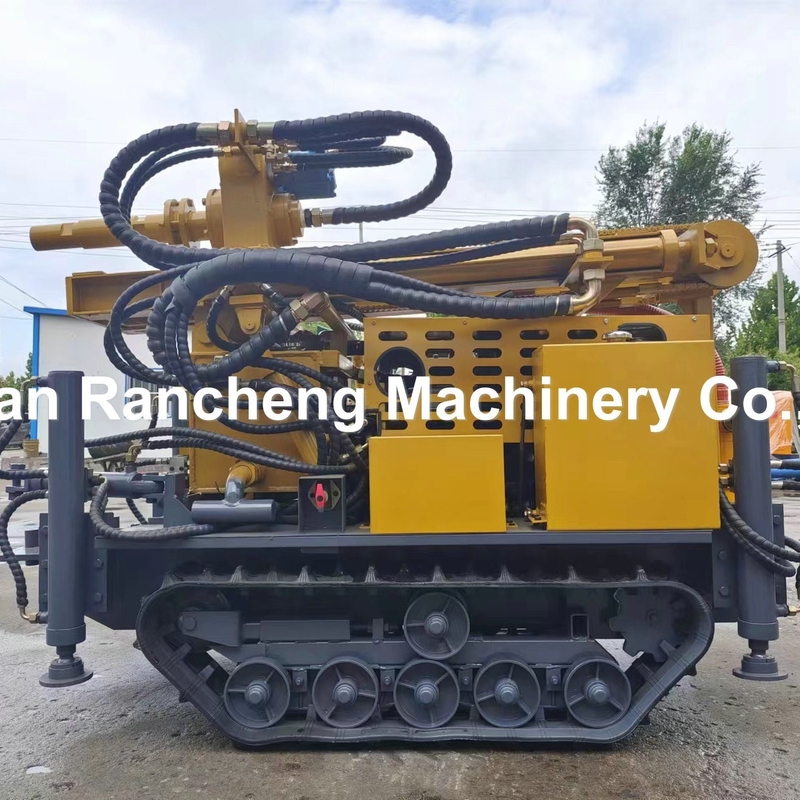

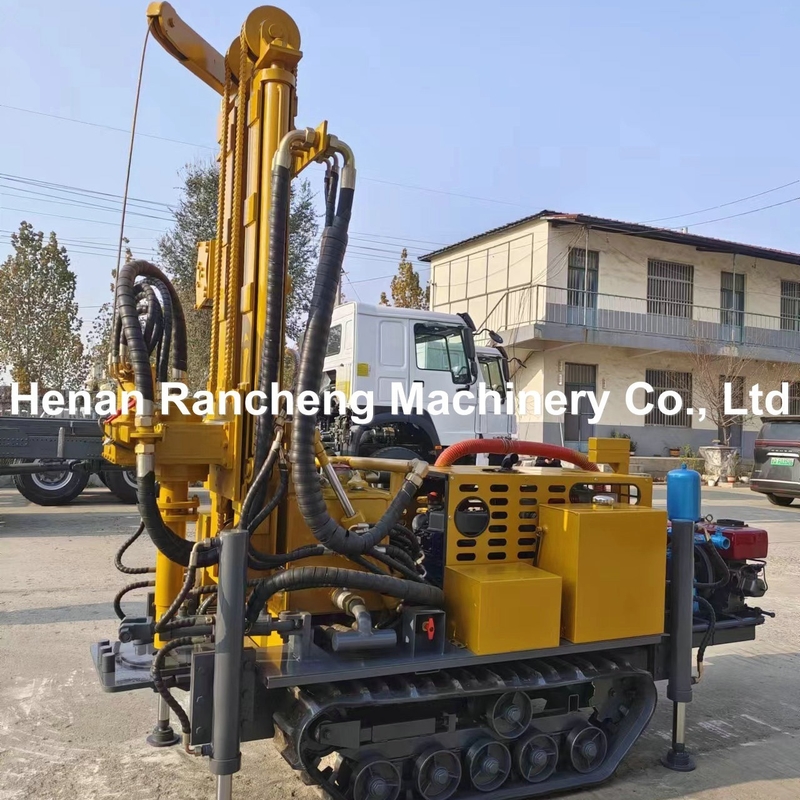

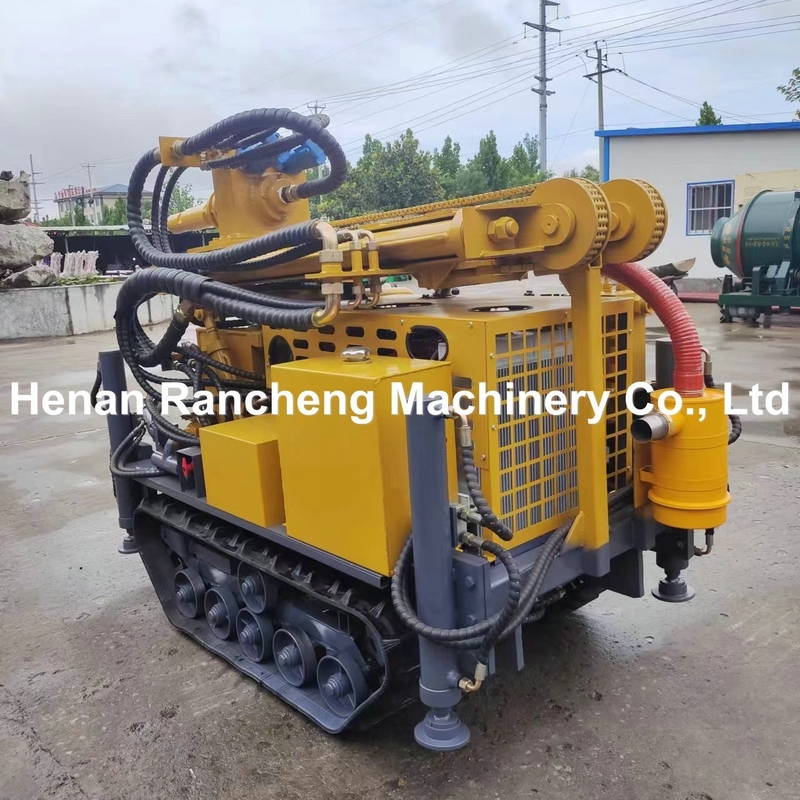

Machine Gallery
